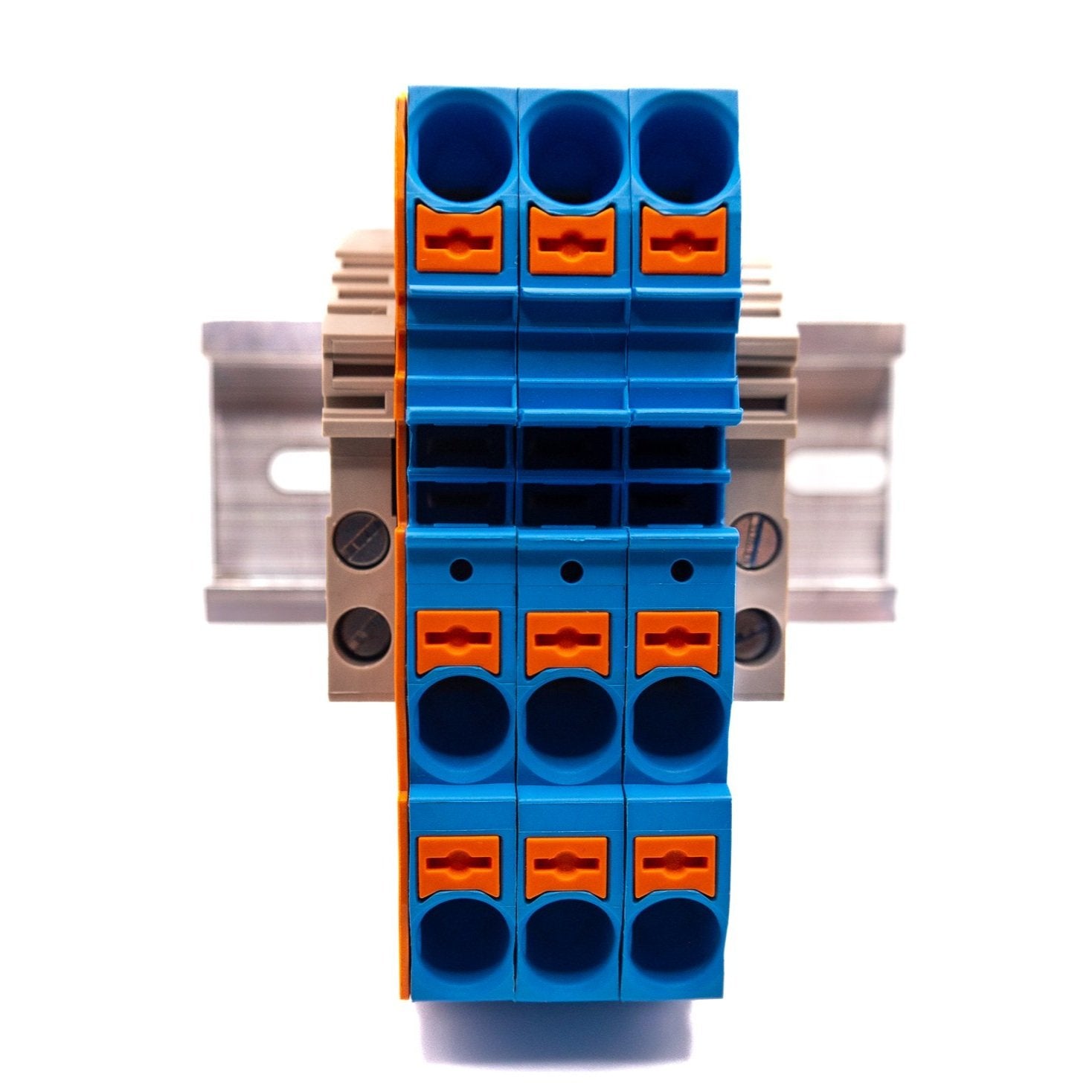

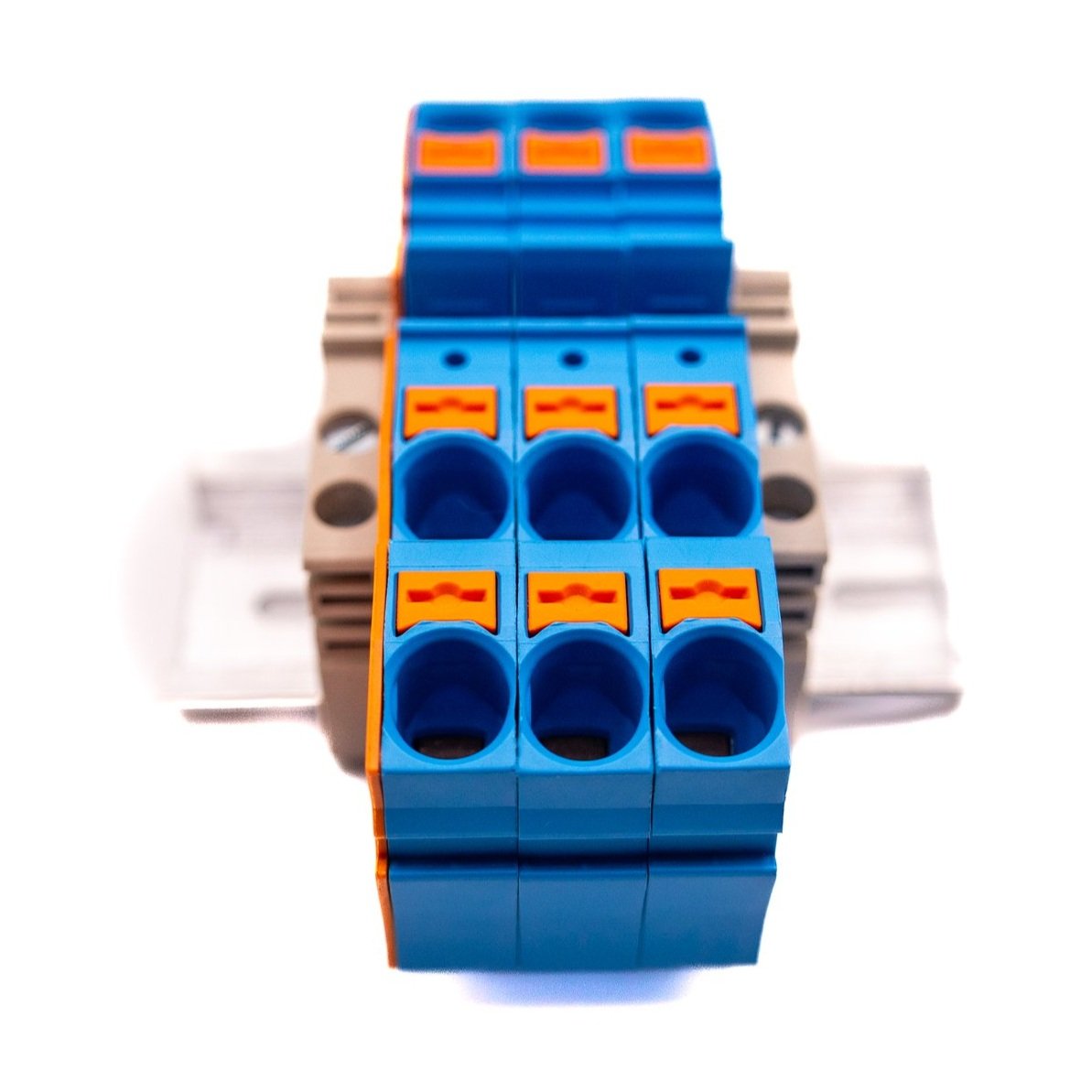

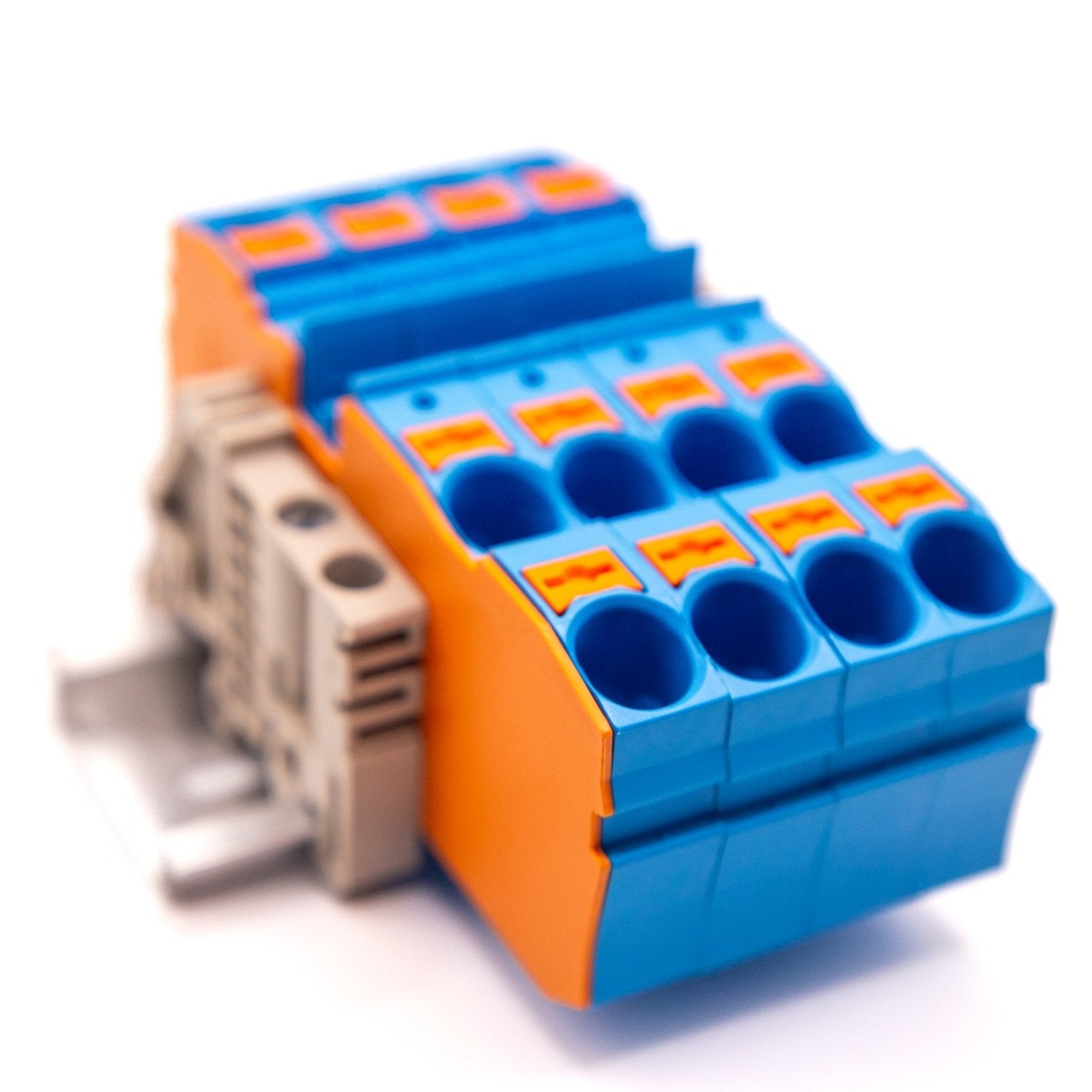

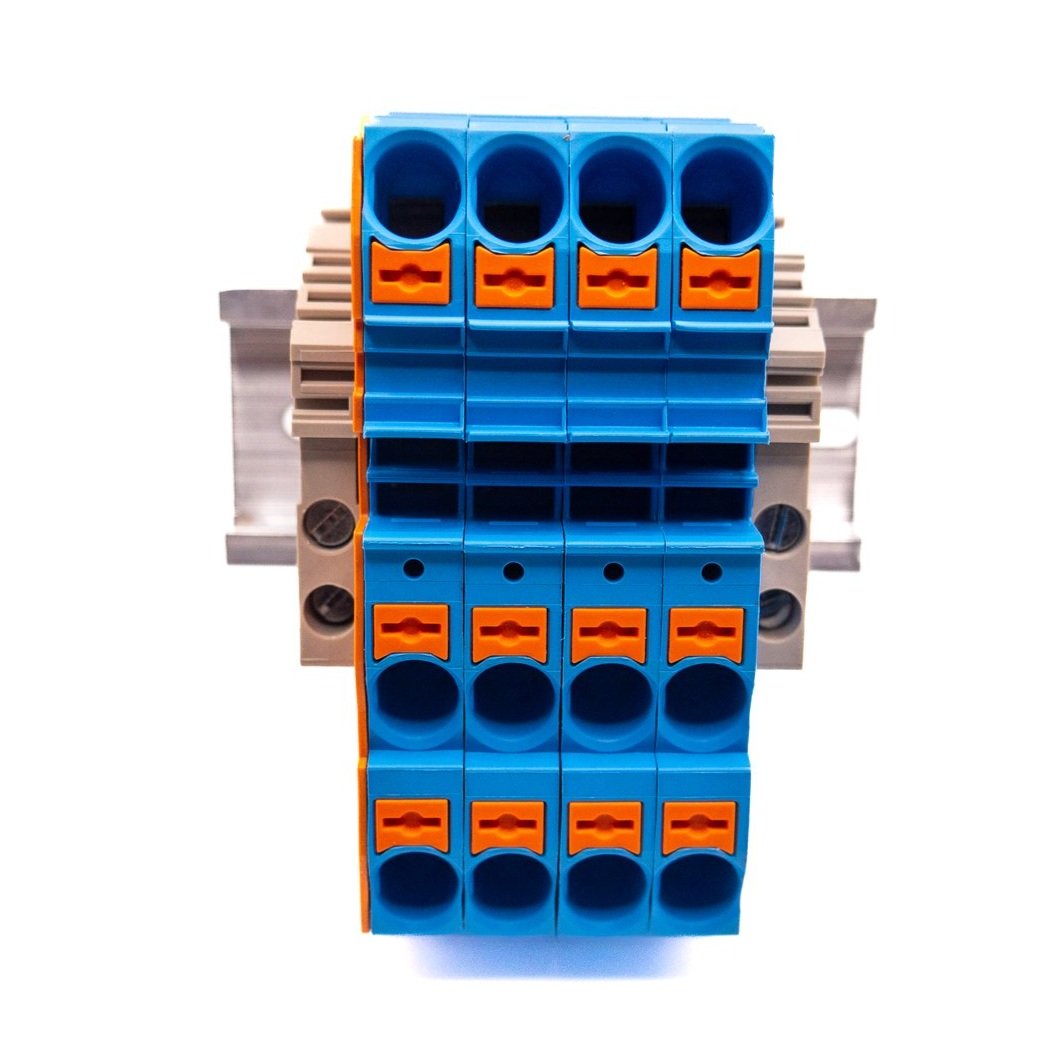

WAGO Terminal Block Din Rail Assembly

$41.50 USD

Sale Sold out

Terminal Block Quantity 3 4

Quantity

4 terminal blocks are needed for combining AC Inputs and another 4 are needed for combining AC Outputs – this is needed when installing 2 Victron inverters in Split Phase 120/240Vac.

4 terminal blocks needed for extending AC wiring on 50A RV’s or boats.
3 terminal blocks needed for extending AC wiring on 30A RV’s, or 15-30A Campervans.
These connectors are lever style. Depress the lever by pushing in on the orange portion of the connector with a flathead screwdriver. Slide your wire into place. Release the lever.
Ferrules are required when using stranded wires.

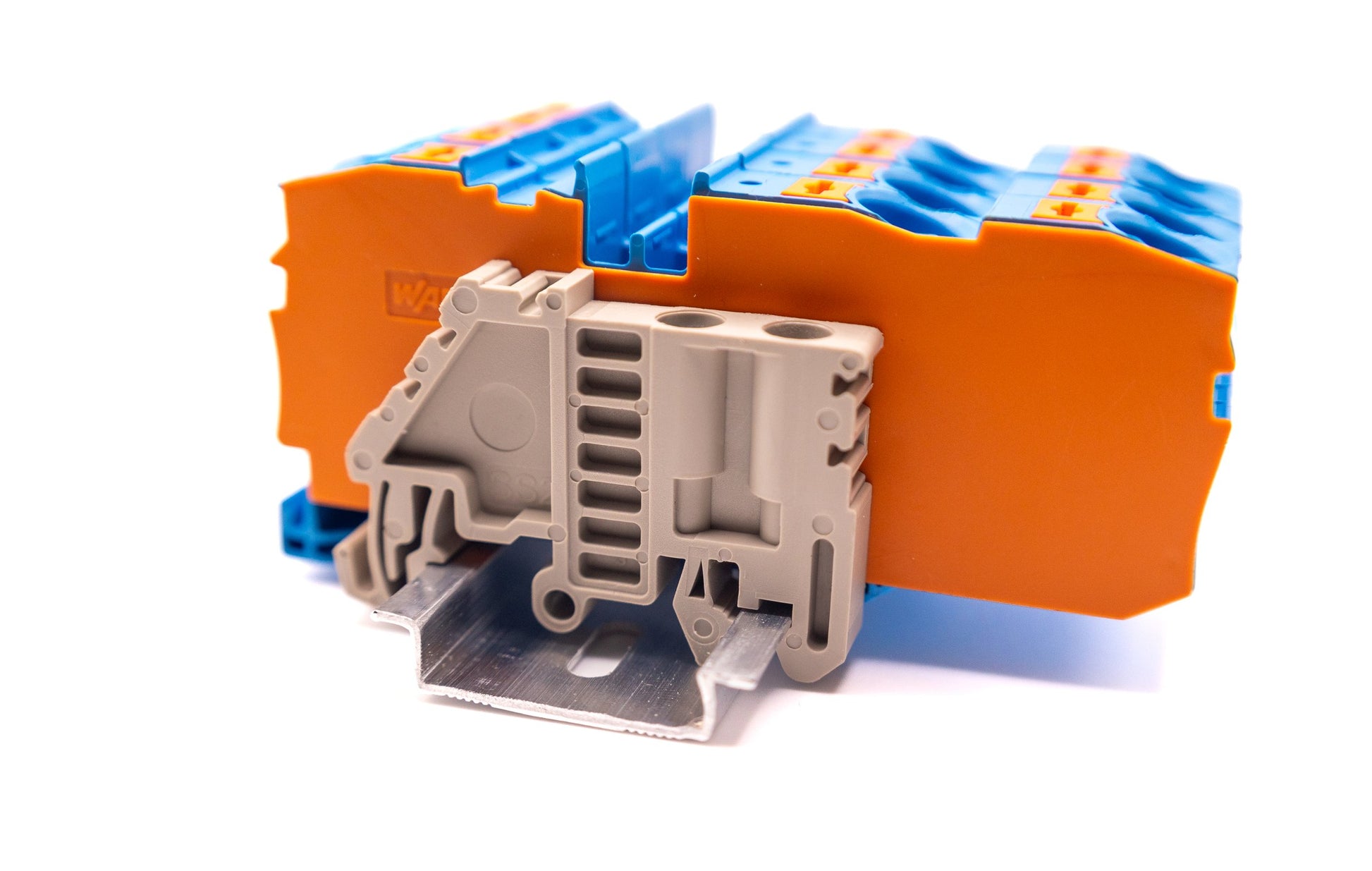

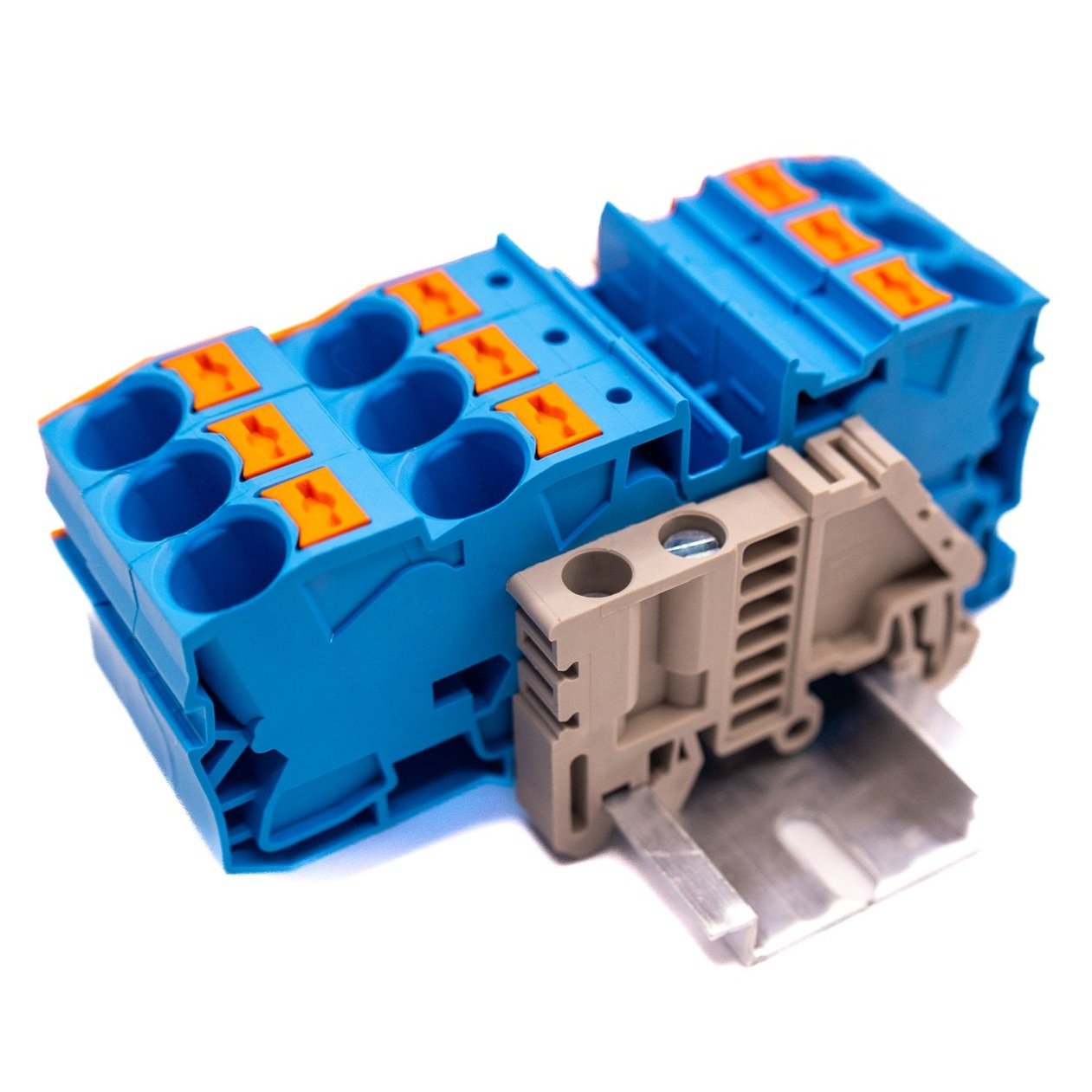

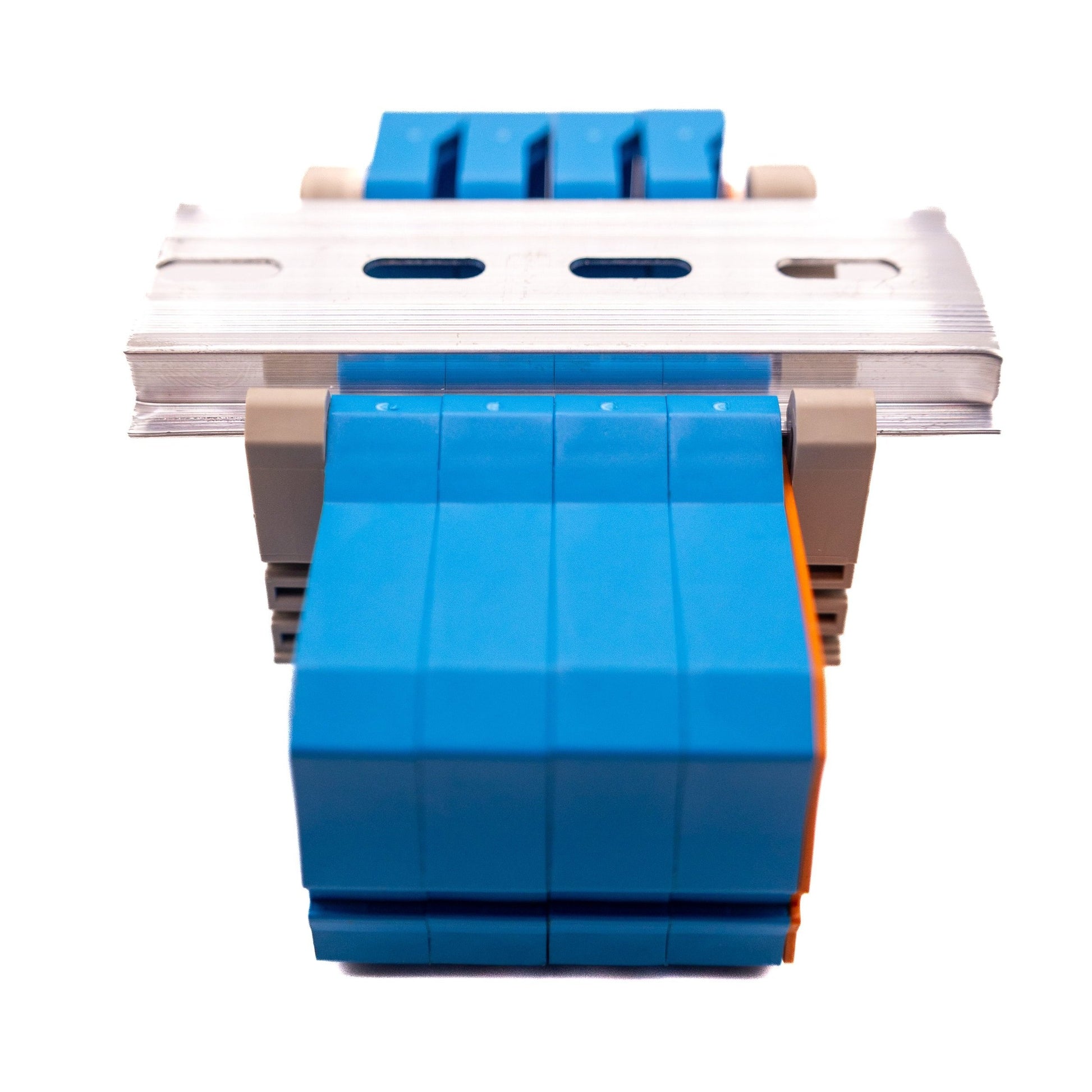

Along with the terminal blocks, included is a side cover for the Terminal Blocks exposed end, a 4” Strip of DIN Rail, and a pair of Din Stoppers to hold the Terminal Blocks in place.
