Rated Voltage: DC 12-400V Protect - And + Pole or AC 90~400V Protect L And N Pole.
Arc Extinguishing: DC arc extinguishing is more difficult than AC. This DC mini circuit breaker has a magnetic system to assist arc extinguishing.

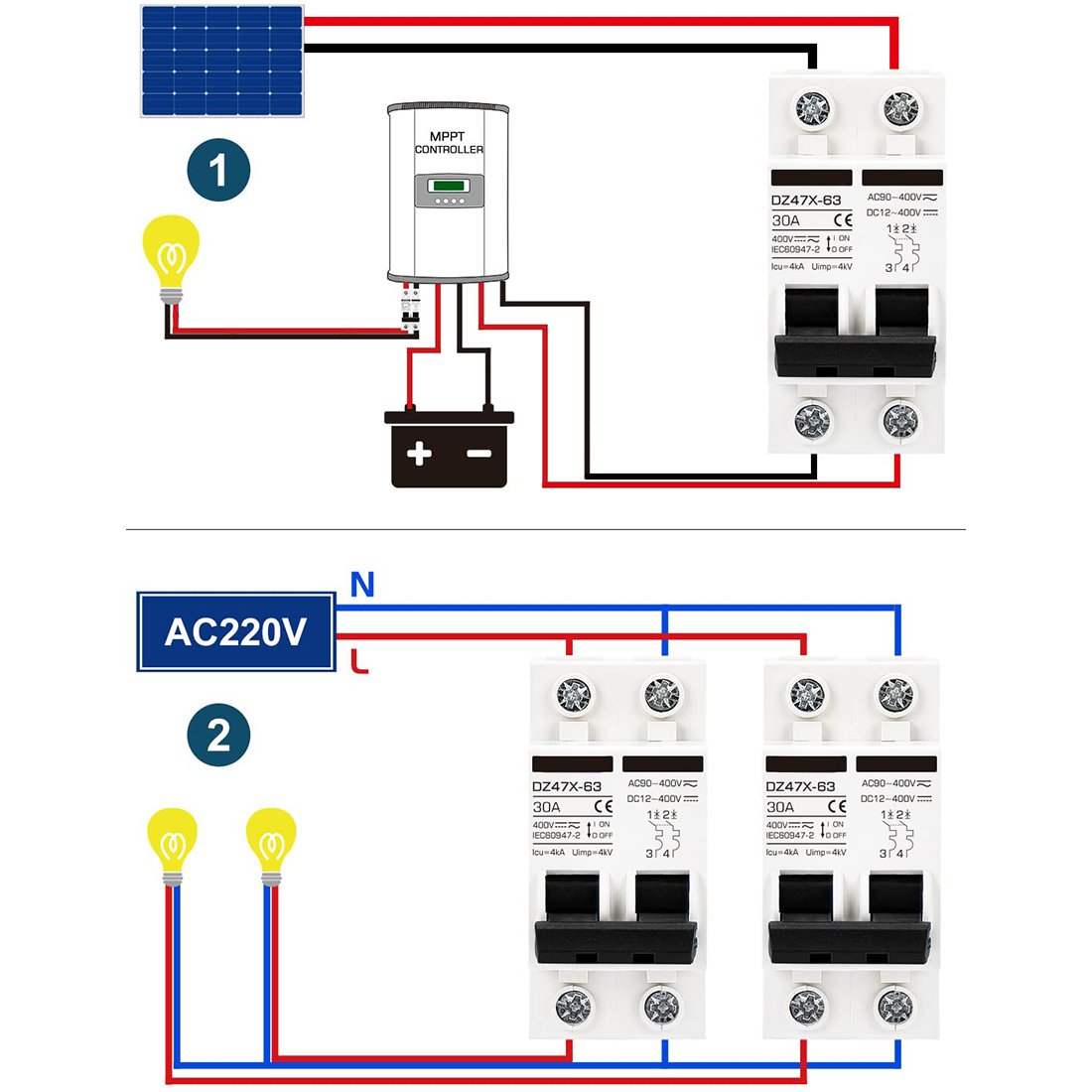

Widely used for solar panel grid system, wind and solar hybrid system and other DC circuit system from damage caused by excess current resulting from an overload or short circuit. It can also be used for on-off use in household 120V/240V circuits

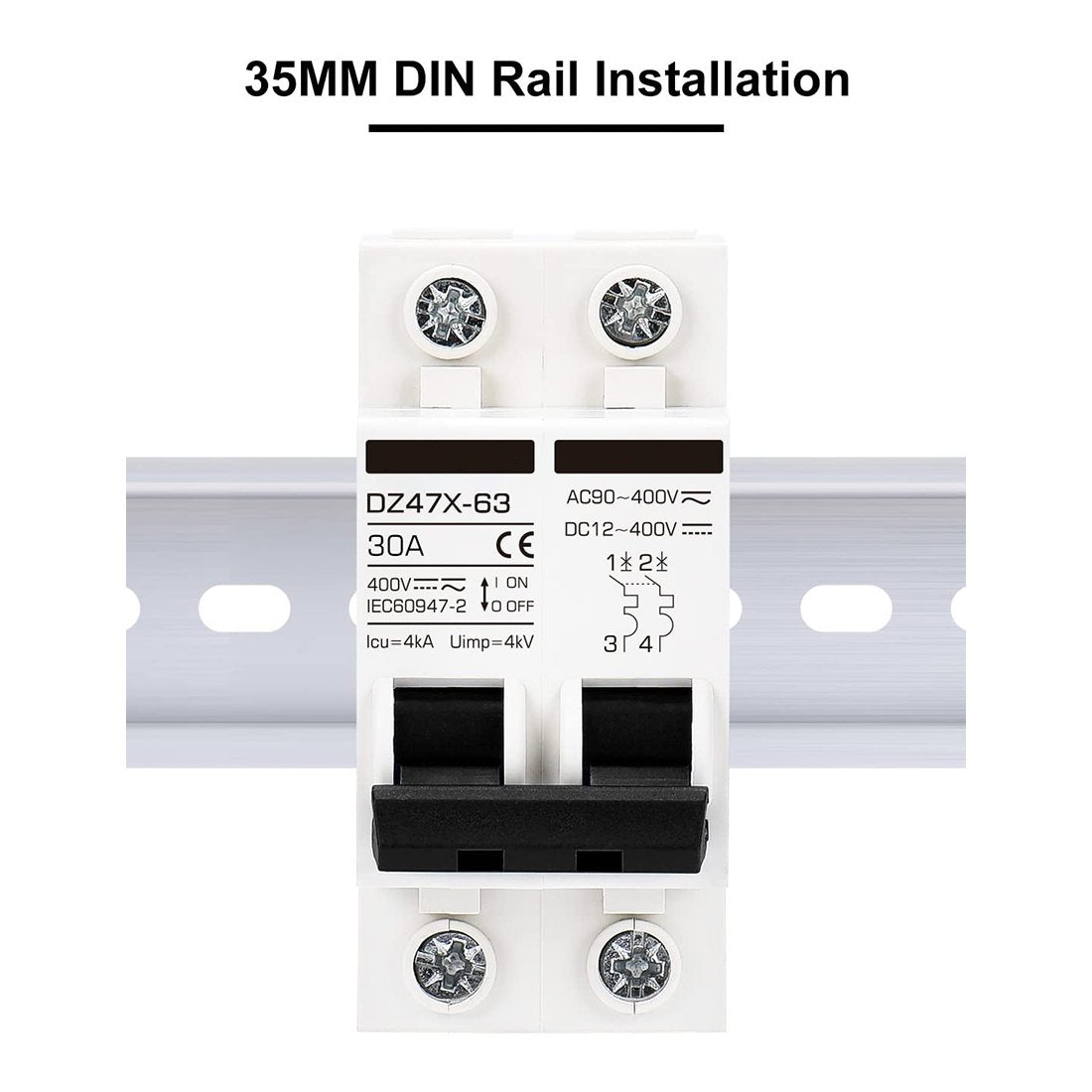

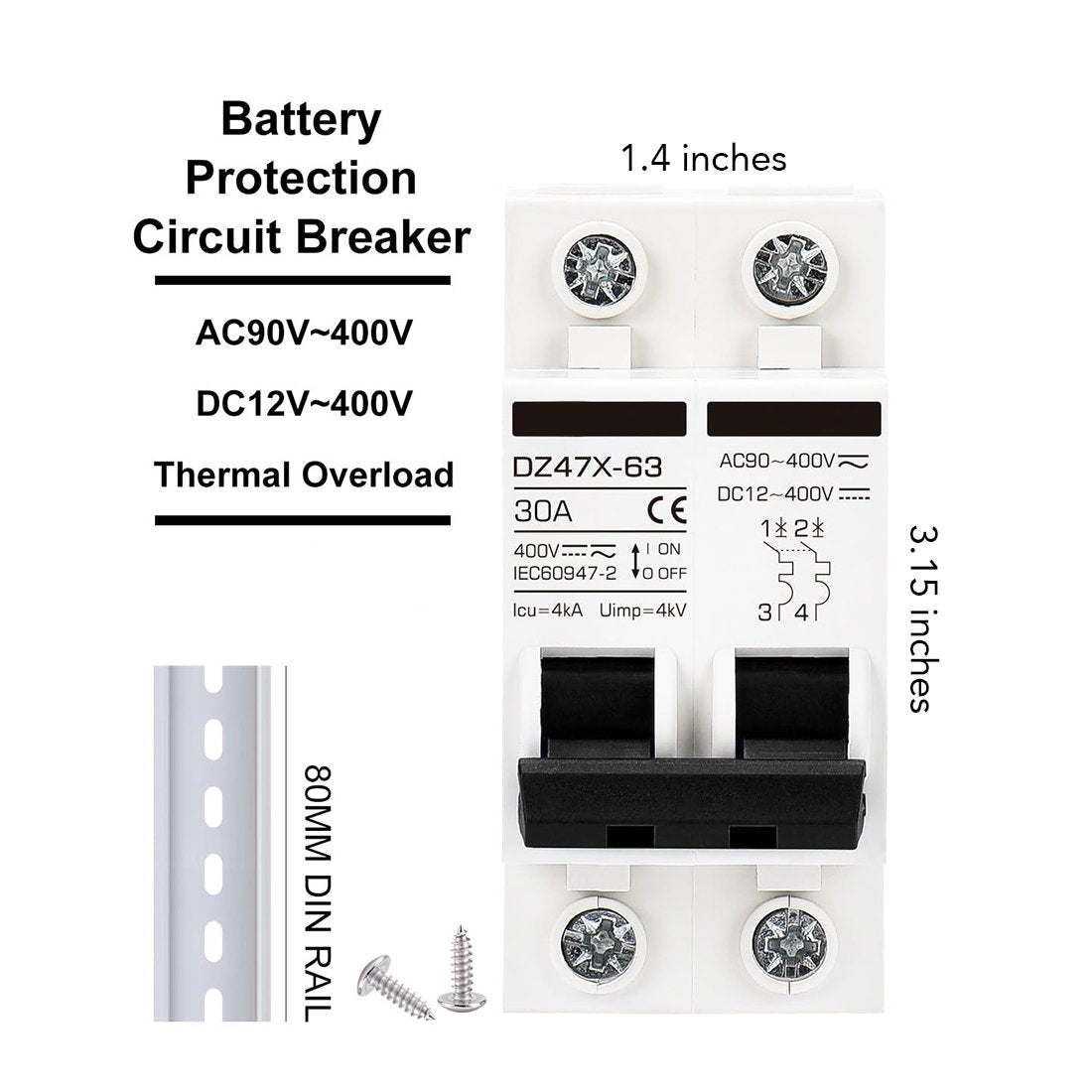

Size: 36MM x 80MM x 75MM, Fit for 35mm DIN rail.
Main application environment: solar energy system, battery, UPS, inverter, utility power. Mainly used for overload protection and short circuit protection.circ
