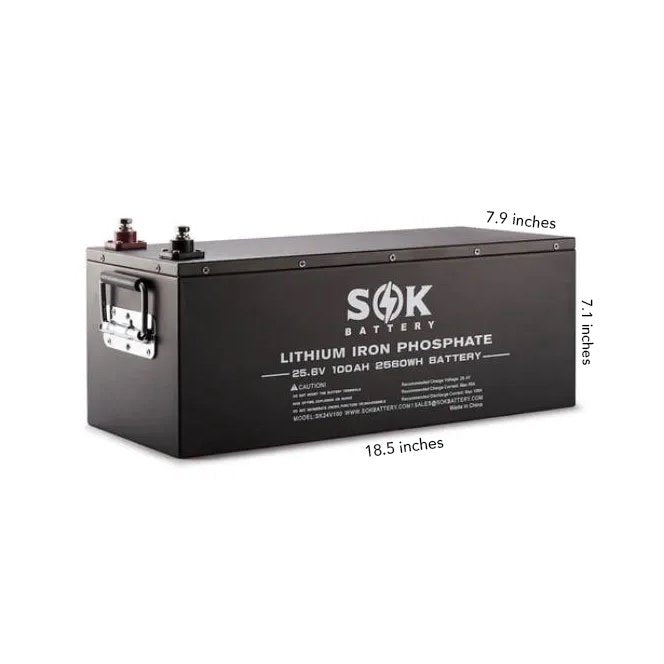

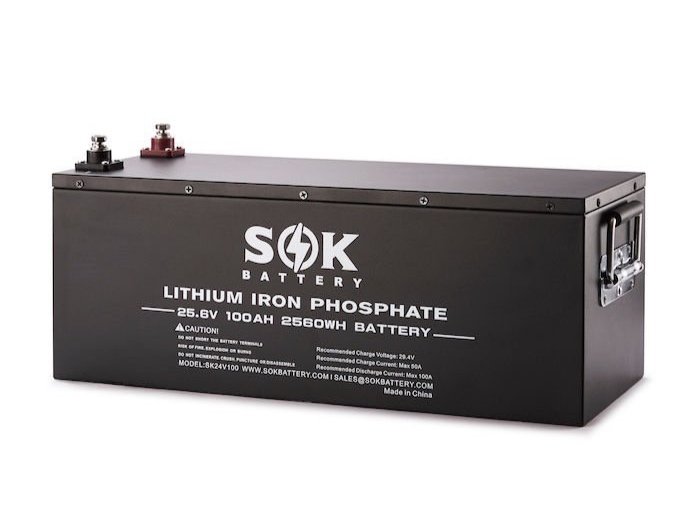

SOK 24V 100Ah LiFePO4 Battery
SOK 24V 100Ah LiFePO4 Battery
Couldn't load pickup availability
About This Product
7 Year Warranty, 4000~8000 Cycle Life Span, Zero Maintenance.
Detachable Cover, Replaceable BMS andCells.
Connect in series for 48V Battery Bank, or Connect in Parallel for Larger Capacity.
Built-in Smart Battery Management System (BMS).
Low Temperature Charging Cut-off.
High Temperature Charging or Discharging Cut-off.
Over Charging or Discharging Protection.
Over Current & Short Circuit Protection.
Battery Cells Auto Balance.
Charge information
Recommend charge current: 20A
Maximum charge current: 50A
Recommend charge voltage:28.8V ~29.2V
Maximum batteries in series: 2PCs batteries.
Discharge information
Maximum continuous discharge current: 100A
Peak discharge current: 200A(3 seconds)
Recommend low voltage disconnect: 22.4V
BMS discharge cut-off voltage: Around 20.8V
Reconnect Voltage: >23.2V
Size information
Terminal Type: M8, 5/16 lugs
Weight: 48 lbs.
Temperature information
Discharge temperature:-4°F~140°F
Charge temperature: 32°F~113°F
Recommend storage temperature:23°F~95°F
Certifications information
UL1973&IEC62619 for Battery cells.
