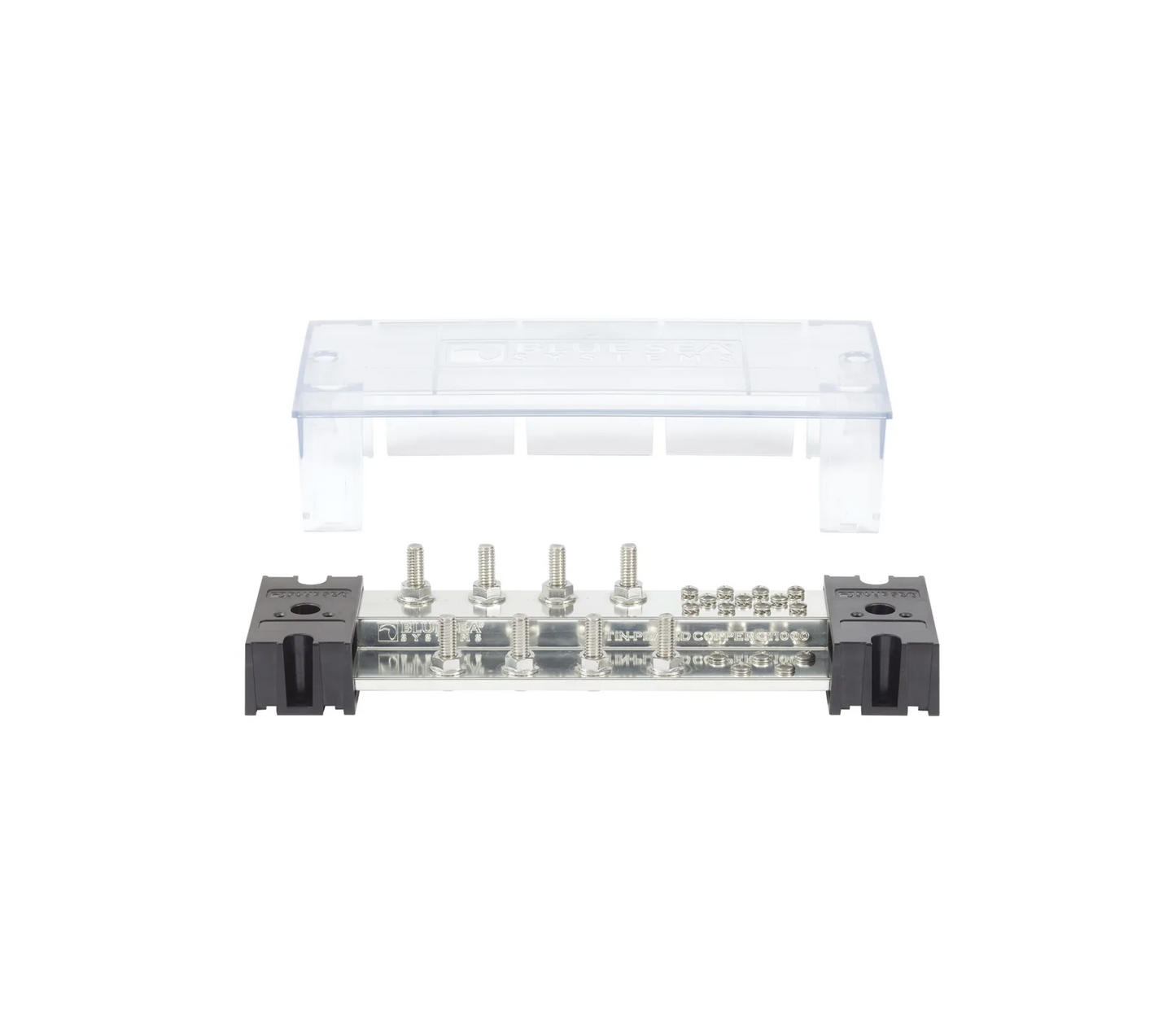

PowerBar 1000 - Multiple Terminal Stud Sizes

About This Product

• Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.

• 1,000 Amp busbar for large complex wiring systems.

• Tin plated pure electrical copper for maximum conductivity.

• Stepped bus design offers two elevations for conductors which doubles.

• The density of the wire loom compared to traditional bus bars.

• Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables.

• One-piece serrated flange nuts ensure correct and secure connections.

• Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires.

• Busbar may be cut to a shorter length to accommodate constricted spaces.

• Bi-directional busbar end caps allow the ganging of additional busbars.

• Snap on insulating cover meets ABYC and USCG requirements and includes label recess.
